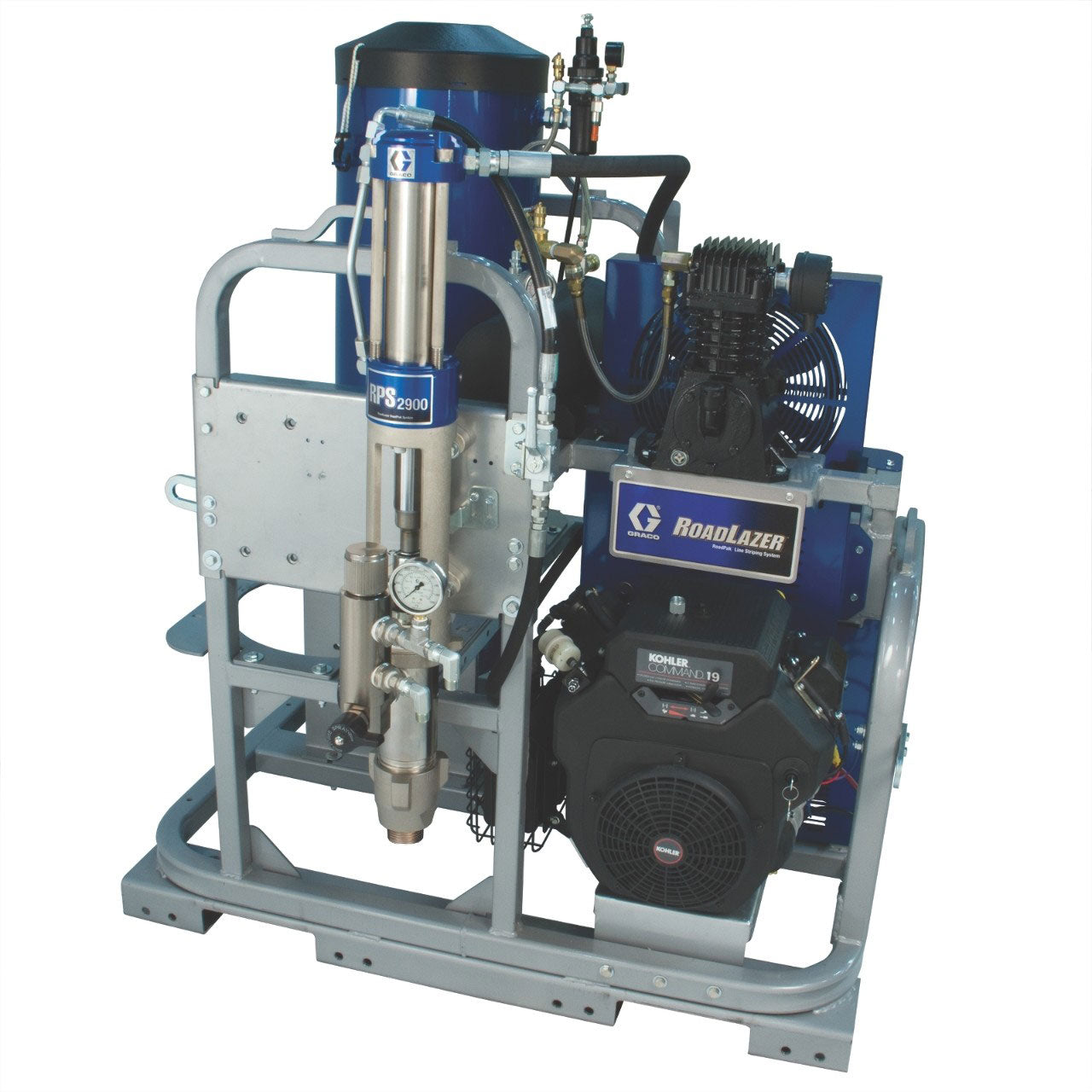

RoadLazer RoadPak System, Option 1

With its modular design, the Graco RoadLazer RoadPak System is designed to be as easy to use as a walk-behind striper with high production speeds normally only found on Long Line trucks.

Option 1 is a truck-mounted system featuring a 1-pump RoadPak Pump System with a 450 pound Bead Tank, 2-Gun Arm, Advanced Controller and Simple Guide System.

FEATURES

RoadPak Pump System

• QHeavy-Duty RPS 2900 Hydraulic System
• No-stall design provides unmatched productivity
• Maximum pressure of 200 bar
• QProven Displacement Pump System
• Delivering outstanding results in pumping paint for decades
• Prime valve allows you to recirculate paint keeping it mixed and ready to go
• QBead Tank System
• ASME rated and can drop at a rate of up to 18 kg per minute
• Easier material loading with large fill spout opening

RoadPak 1-Pump/2-Gun Arm

• Fast set-up, high output
• 3 Gun capacity
• No-tools gun adjustments

Advanced Controller

• Less Setup Time
• Built-in advanced patterns for quick recall
• Pattern preview gives a quick visual of colors and patterns selected
• Export capabilities allows for "proof of job"

Heavy-Duty Modular Frame System

• Heavy-duty steel frame is built to last
• Simple to add the options you want in minutes - optimizing your striping system
• Small frame size allows it to fit almost anywhere - from the back of a pickup or flatbed truck to the bed of a utility vehicle

Heavy-Duty Compressor

• 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
• Accumulation tank supports up to 5 airless paint guns and 5 bead guns

Kohler® Power

• 19 HP (14.2 kW) Kohler engine
• Over 15 years of reliable experience

TECHNICAL SPECIFICATIONS

With its modular design, the Graco RoadLazer RoadPak System is designed to be as easy to use as a walk-behind striper. The RoadPak System’s high productivity means that you can stripe with high production speeds normally only found on Long-Line trucks.
